Daikin VRV cassette indoor units FXZQ, FXFQ, FXCQ, FXKQ
Daikin VRV cassettes are built into the suspended ceiling and supply air through a ceiling panel; there are four types: fully flat, round flow (360°), 2-way and 1-way blow. The list contains 29 models from 1.7 to 14.0 kW nominal cooling.
- Installation
- In the suspended ceiling, with ceiling panel
- FXZQ-A
- Fully flat cassette, class 15–50
- FXFQ
- Round flow (360°), class 20–125
- FXCQ-A
- 2-way blow, class 20–125
Models (29)
| Code | Model | Type | Capacity class | Nominal cooling (kW) |
|---|---|---|---|---|
| FXZQ15A | FXZQ 15 | Fully flat | 15 | 1.7 |
| FXZQ20A | FXZQ 20 | Fully flat | 20 | 2.2 |
| FXZQ25A | FXZQ 25 | Fully flat | 25 | 2.8 |
| FXZQ32A | FXZQ 32 | Fully flat | 32 | 3.6 |
| FXZQ40A | FXZQ 40 | Fully flat | 40 | 4.5 |
| FXZQ50A | FXZQ 50 | Fully flat | 50 | 5.6 |
| FXFQ20 | FXFQ 20 | Round flow (360°) | 20 | 2.2 |
| FXFQ25 | FXFQ 25 | Round flow (360°) | 25 | 2.8 |
| FXFQ32 | FXFQ 32 | Round flow (360°) | 32 | 3.6 |
| FXFQ40 | FXFQ 40 | Round flow (360°) | 40 | 4.5 |
| FXFQ50 | FXFQ 50 | Round flow (360°) | 50 | 5.6 |
| FXFQ63 | FXFQ 63 | Round flow (360°) | 63 | 7.1 |
| FXFQ80 | FXFQ 80 | Round flow (360°) | 80 | 9.0 |
| FXFQ100 | FXFQ 100 | Round flow (360°) | 100 | 11.2 |
| FXFQ125 | FXFQ 125 | Round flow (360°) | 125 | 14.0 |
| FXCQ20A | FXCQ 20 | 2-way blow | 20 | 2.2 |
| FXCQ25A | FXCQ 25 | 2-way blow | 25 | 2.8 |
| FXCQ32A | FXCQ 32 | 2-way blow | 32 | 3.6 |
| FXCQ40A | FXCQ 40 | 2-way blow | 40 | 4.5 |
| FXCQ50A | FXCQ 50 | 2-way blow | 50 | 5.6 |
| FXCQ63A | FXCQ 63 | 2-way blow | 63 | 7.1 |
| FXCQ80A | FXCQ 80 | 2-way blow | 80 | 9.0 |
| FXCQ125A | FXCQ 125 | 2-way blow | 125 | 14.0 |
| FXKQ20P | FXKQ 20 | 1-way blow | 20 | 2.2 |
| FXKQ25P | FXKQ 25 | 1-way blow | 25 | 2.8 |
| FXKQ32P | FXKQ 32 | 1-way blow | 32 | 3.6 |
| FXKQ40P | FXKQ 40 | 1-way blow | 40 | 4.5 |
| FXKQ50P | FXKQ 50 | 1-way blow | 50 | 5.6 |
| FXKQ63P | FXKQ 63 | 1-way blow | 63 | 7.1 |
Series specifications
| Installation | In the suspended ceiling, with ceiling panel |
|---|---|
| FXZQ-A | Fully flat cassette, class 15–50 |
| FXFQ | Round flow (360°), class 20–125 |
| FXCQ-A | 2-way blow, class 20–125 |
| FXKQ-P | 1-way blow, class 20–63 |
| Nominal cooling | 1.7–14.0 kW |
| Fan motor | DC |
| Panel | Decoration panel is a separate line (BY… codes) |
Accessories
| Code | Product | Use |
|---|---|---|
| BYFQ60CW | Decoration panel | Ceiling panel for a VRV cassette indoor unit; added as a separate line under the indoor unit |
| BYCQ140E | Decoration panel | Panel for round flow (360°) cassettes |
| BYK63G | Decoration panel | Ceiling panel for a VRV cassette indoor unit; added as a separate line under the indoor unit |
| BYK32G | Decoration panel | Ceiling panel for a VRV cassette indoor unit; added as a separate line under the indoor unit |
| BYBCQ63H | Decoration panel | Ceiling panel for a VRV cassette indoor unit; added as a separate line under the indoor unit |
| BYBCQ40H | Decoration panel | Ceiling panel for a VRV cassette indoor unit; added as a separate line under the indoor unit |
| BYBCQ125H | Decoration panel | Ceiling panel for a VRV cassette indoor unit; added as a separate line under the indoor unit |
How to choose
- Flush with the ceiling: FXZQ, whose panel sits flat with the ceiling surface (class 15–50, 1.7–5.6 kW).
- Square and large rooms: FXFQ distributes air through 360°; with classes 20–125 it also suits large areas such as meeting rooms and open-plan offices.
- Rectangular and narrow rooms: FXCQ blows in two directions; for corridors and long, narrow rooms use the 1-way FXKQ.
- Panel: decoration panels for cassettes are listed under their own codes; add the matching panel for each indoor unit as a separate line.
How to write it in a quote
Write the indoor unit with type, class and capacity: “Daikin VRV FXFQ50 round flow cassette indoor unit, class 50, 5.6 kW nominal cooling”. Put the decoration panel and the wired remote controller right below it as separate lines, so the customer can see clearly that the panel is in scope.
FAQ
Is the panel included with a cassette indoor unit?
In the list the decoration panels have their own codes (BYFQ60CW, BYCQ140E, BYK32G, BYK63G, BYBCQ40H, BYBCQ63H, BYBCQ125H), so indoor unit and panel are separate quote lines. Check in the Daikin documentation which panel fits which unit.
What is the difference between FXZQ and FXFQ?
FXZQ is the fully flat cassette in classes 15–50 (1.7–5.6 kW). FXFQ distributes air in a 360° round pattern and covers classes 20–125 (2.2–14.0 kW).
What does capacity class mean?
It is the number in the model code, for example 32 in FXCQ32A. The list gives 3.6 kW nominal cooling for class 32 and 7.1 kW for class 63.
Which cassette suits a long, narrow room?
The 2-way FXCQ or the 1-way FXKQ. FXKQ is designed in particular for corridors and narrow rooms.
Other series in this group

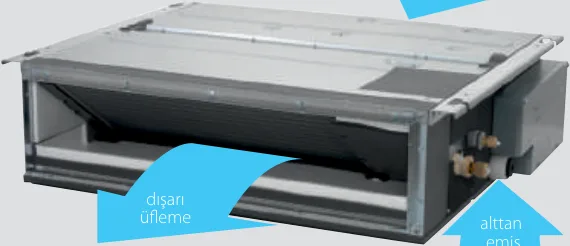

Daikin · VRV concealed ceiling indoor unitDaikin VRV ducted concealed ceiling units FXDQ, FXSQ, FXMQ25 models

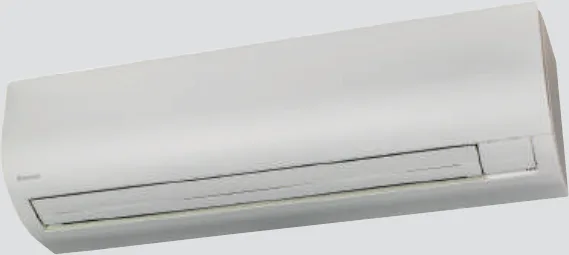

Daikin · VRV wall-mounted indoor unitDaikin VRV FXAQ-A wall-mounted indoor units (1.7–7.1 kW)7 models

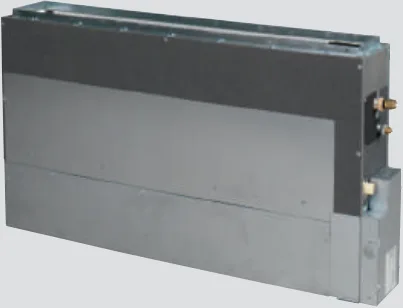

Daikin · VRV floor-standing indoor unitDaikin VRV floor-standing indoor units FXNQ-A / FXLQ-P12 modelsInformation compiled from the Daikin product documents. Tekliva does not sell products or publish prices.
